The EA Game simulates decisions in an EA practice. To do this, System Dynamics is used: All logic, rules and relations are maintained in a System Dynamics model that covers the following areas:
- EA staffing and competencies
- EA Manager’s role
- Documentation process
- EA tools
- Stakeholder communications
- Organizational development
- Project governance and
- Economy.
To create and refine the model, Vensim is used.
See the diagrams below.
Every diagram can be extended and refined, and we are open to comments and suggestions. We are also very interested in ideas for other relevant causal loop diagrams and stock-and-flow diagrams.
Vensim Diagrams
Employees

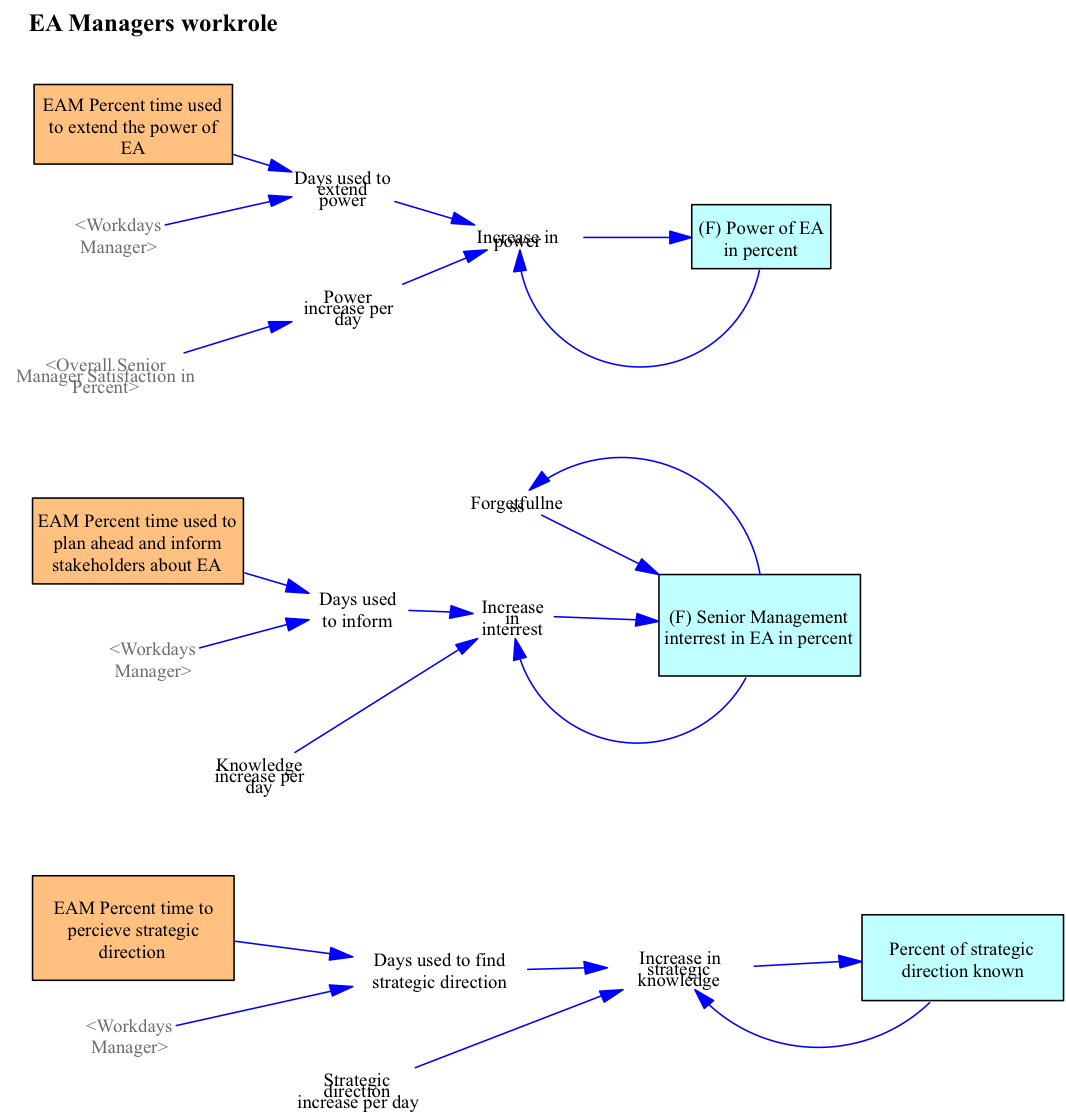

EA Manager
Documentation

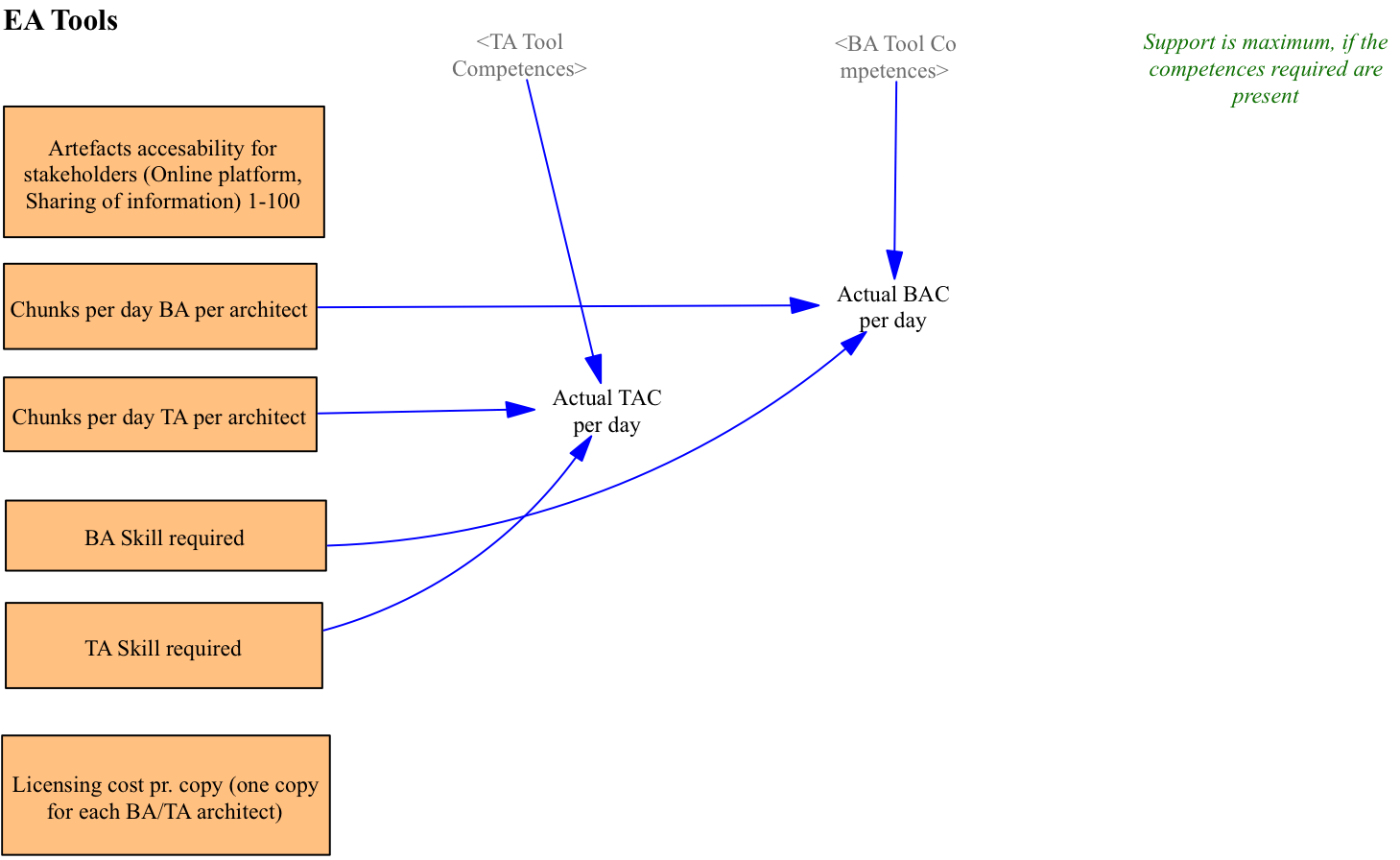

EA Tools
Stakeholder communication
Organizational Development
Project governance
Economy

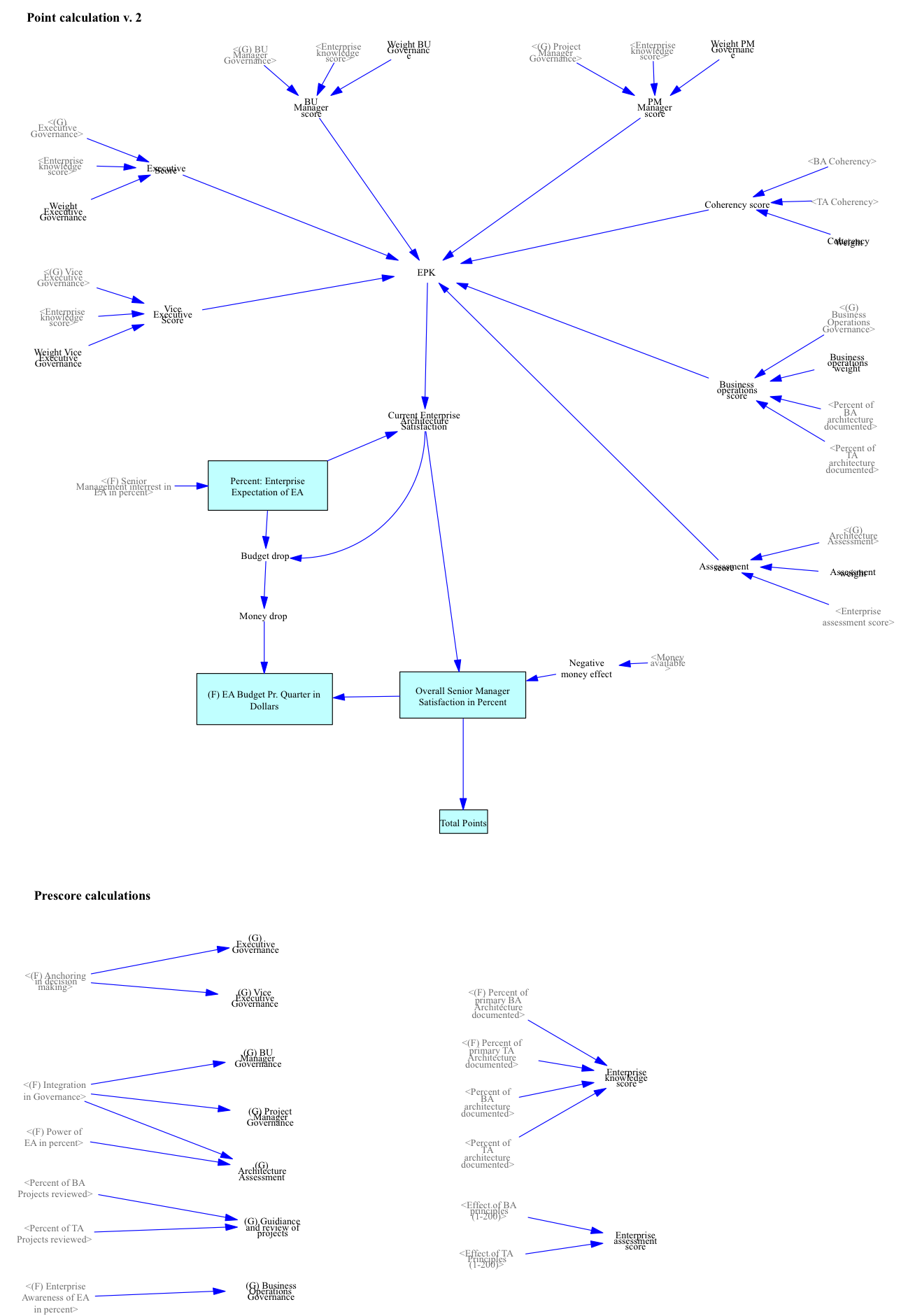

Points
